Forced Action Planetary Concrete Mixer

Forced action planetary concrete mixer is a highly efficient concrete mixing equipment, widely used in construction engineering, bridge construction, prefabricated component production and other fields. Its core feature is to achieve strong and uniform mixing of concrete raw materials through the planetary motion trajectory of the mixing blades, especially suitable for mixing hard-to-mix materials such as dry hard concrete, high-strength concrete, fiber concrete, etc.

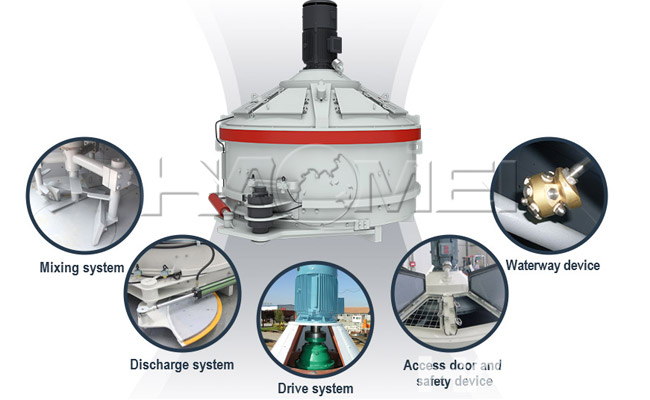

Main components of forced action planetary concrete mixer:
- Mixing system: contains multiple mixing blades, arranged in a planetary manner, which revolve around the central axis while rotating themselves.
- Transmission system: composed of motors, reducers, etc., driving the mixing blades to achieve compound motion.
- Mixer drum: It is disc-shaped, and the inner wall is usually provided with wear-resistant lining to reduce material wear.
- Feeding and unloading device: used for quantitative feeding of materials and unloading operations after mixing.
- Control system: can realize automatic operation and control parameters such as mixing time and speed.

Application scenarios of forced planetary concrete mixer:
- Projects with high requirements for concrete homogeneity, such as high-rise buildings and water conservancy projects.
- Prefabricated component factories produce concrete components (such as pipe piles, bridge beams, etc.). Mixing of special concrete (such as impermeable concrete, self-compacting concrete).

Working principle of forced planetary concrete mixer:
The working principle of forced type planetary concrete mixer is based on the compound motion mixing mechanism, and efficient mixing is achieved through the following steps:
1. Material input and preliminary mixing
- Raw materials such as cement, sand, gravel, water and admixtures are put into the mixing drum according to the proportion.
- The mixing blades begin to revolve at a low speed, driving the materials to do circular motion in the drum to achieve preliminary mixing.
2. Strong mixing of planetary motion
- Combination of revolution and rotation: The mixing blades revolve around the central axis of the mixing drum (large circle rotation), while the blades themselves rotate in the opposite direction (small circle rotation), forming a trajectory similar to that of planets orbiting stars.
- Shear and extrusion action: The compound motion of the blades causes the materials to be subjected to strong shear, extrusion and flipping in the drum. For example, when the blades revolve, they push the materials to move along the drum wall, and when they rotate, they generate cutting force on the materials, breaking the agglomeration between the material particles, so that the cement slurry evenly wraps the sand and gravel aggregates.
- Three-dimensional space mixing: The planetary motion track covers the entire area of the mixing drum, avoiding the mixing dead corners of the material, especially for dry and hard concrete (low water content, poor fluidity), which can quickly achieve uniform distribution of cement and aggregate.
3. Homogenization and unloading
- As the mixing time increases, the material reaches a highly homogenous state under the continuous action of the blades, the proportion of each component is uniform, and the concrete consistency is consistent.
- After the mixing is completed, the concrete is discharged from the bottom or side of the mixing drum through the unloading device and enters the next construction stage.

Comparative advantages with other concrete mixers:
- High mixing efficiency: Compared with traditional self-falling concrete mixers, the mixing time of forced planetary concrete mixers is shortened by 30%~50%.
- Good mixing quality: Especially suitable for mixing high-strength, low-slump concrete, the homogeneity error can be controlled within ±2%.
- Strong adaptability: It can mix a variety of aggregates (including larger stone) and special additives, with a wide range of applications.
- Through the above principles, the forced planetary concrete mixer achieves efficient and precise mixing of concrete, becoming an indispensable key equipment in modern engineering construction.
