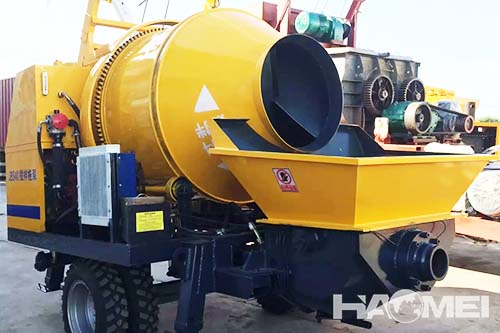

Concrete Mixer and Pump
Concrete mixer and pump is the combination of mixing system and pumping system. The hoisting system brings all the materials into mixing drum to mix. When the mixing is finished, the mixed concrete will be automatically discharged into the hopper for pumping. (During the Pumping process, the mixer continues to mix concrete). When pumping concrete, with the power provided by the hydraulic oil, the piston in the two main cylinders repeat the reciprocating movement, one cylinder forward, the other cylinder back. With the help of the swing cylinders, the S valve keep switching between the two concrete cylinders to achieve continuous pumping.
The parameter of Haomei small concrete mixer and pump:
| Items | Units | ABJZ30C | ABJZ40C | ABJS40C-JS500 | ABJS40C-JS750 |
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 | 0.5 | 0.75 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 8 | 8 |
| Distribution valve type | S Valve | ||||
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 | Φ200×1000 | Φ200×1000 |
| Hopper capacity | L | 400 | 400 | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 | Φ180 | Φ180 |
| Diesel engine model | Weichai | Weichai | Weichai | ||
| Electrical engineering power | KW | 37 | 82 | 129 | 129 |
| Rotate speed | r/min | 1480 | 2200 | 2200 | 2200 |
| Circuit type | Open circuit | ||||
| Pumping system pressure | MPa | 26 | 32 | 32 | 32 |
| Mixing system pressure | MPa | 6-8 | 6 | 6 | 6 |
| Capacity of oil tank | L | 260 | 350 | 350 | 350 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 | 120/500 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 600x2300x3150 | 7500x2300x3150 | 7500x2300x3150 |
| Total weight | kg | 3000 | 4500 | 5000 | 5500 |
Main Features of Concrete Mixer and Pump machine
1. Adopt world-level advanced technology.
2. Combination of the mixer and pump requires less working space.
3. All-hydraulic pumping system ensures stable operation.
4. Equipped with wired remote control, which makes it more convenient to operate.
5. Diesel engine ensures normal operation without electricity.
6. It has wide application and can meet many different requirements of construction sites.
7. The concrete mixing and pumping machine can save cost and promote production efficiency.
8. Self-centralized lubricating system ensures the effective lubricating for machine.
9. Easy operation, fine structure, advanced technology, long service life.
10. Easy maintenance, stable and continuous working, high-usage.
