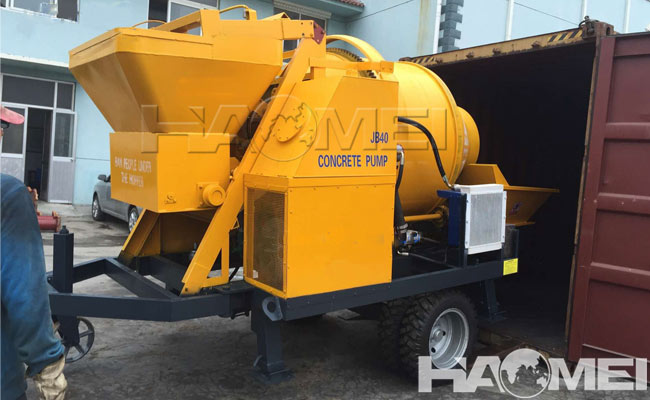

Trailer Mounted Concrete Mixer Pump

Trailer mounted concrete mixer pump can also be called truck-mounted mixing drag pumps. Truck-mounted pumps combine the advantages of drag pumps and pump trucks. They are more flexible and maneuverable than drag pumps, and are easier to maintain and move due to their smaller size compared to pump trucks. When construction is carried out on narrow roads, large mixing trucks are often difficult to enter, but truck-mounted pumps are suitable for such situations.

In concrete construction, the most important thing is to find the concrete mix ratio for the concrete pump construction. Due to the different requirements for concrete performance and pumping requirements in different projects, some require dry materials, and neither too dry nor too thin are suitable. Therefore, how to choose raw materials and mix concrete with good economic indicators and pumpability is the primary problem that must be solved before the construction of each concrete pump. Just as with any task, concrete construction also needs a clear beginning and end. Simply cutting off the power supply of the trailer mounted concrete mixer pump is not enough, before the pumping ends, it is necessary to estimate the amount of concrete in the conveying pipe of the trailer concrete mixer pump (1.5 cubic meters/100 meters for φ125 conveying pipe, 2 cubic meters/100 meters for φ150 conveying pipe) and understand the pouring surface requirements in order to grasp the timing of stopping the pump. In addition, some concrete will inevitably remain in the conveying pipe after the construction is completed. Therefore, after the pumping is finished, water pressure is needed to transport the concrete in the pipe to the working surface in order to avoid it solidifying in the pipe and affecting the next construction.

How do trailer mounted concrete mixer pump benefit rural housing construction? In terms of purchase cost, a general truck mounted concrete pump costs between 100,000 and 150,000, while a truck-mounted mixing drag pump costs less than four hundred thousand, which is within the range that most construction machinery users can afford. In terms of the functions the equipment possesses, a trailer mounted concrete mixer pump combines the features of a concrete mixing machine and a concrete pump, integrating powerful functions such as walking, feeding, mixing, high-pressure pumping. This enables rural housing construction to reduce labor and improve efficiency, and just this aspect alone brings good news to rural housing construction.

In addition, in terms of the driving mode of the equipment, a trailer mounted concrete mixer pump uses diesel power, taking into consideration the bearing capacity of rural power grids. If certain rural power grids have strong bearing capacity, a customized dual-power system diesel-electricity trailer mounted mixer pump can be used, so that the suitable power driving mode can be selected according to the actual construction situation of rural housing.
