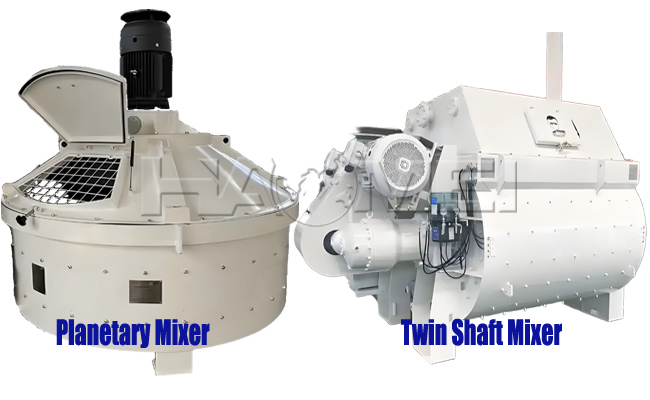

Planetary Mixer VS Twin Shaft Mixer

Planetary concrete mixers and twin-shaft concrete mixers are two common concrete mixing equipment, each with different characteristics and application scenarios. Planetary mixers and twin-shaft mixers differ in many aspects. The following is a comparison between the two.

1. Structural design
- Planetary concrete mixer: Usually adopts a vertical shaft structure, and the mixing device includes a vertical main shaft, a mixing arm and a mixing blade. The mixing arm and the blade are distributed at a reasonable angle. When working, as the main shaft rotates, the blades perform planetary motion, which can cover the entire mixing drum and reduce the mixing dead angle.
- Twin-shaft mixer: Generally, there are two horizontal mixing main shafts, on which the mixing arms and blades are installed. The mixing arms and blades are staggered on the two shafts, and the main shaft is driven by the motor to rotate to force the mixture to mix.

2. Working principle
- Planetary mixer: The mixing arm revolves and rotates at the same time, so that the material is subjected to multi-dimensional mixing forces, the mixing trajectory is complex, and a more uniform mixing effect can be achieved. It is suitable for mixing materials with high homogeneity requirements.
- Twin-shaft mixer: Relying on the relative rotation of two mixing shafts, the blades drive the material to flow in the mixing drum, so that the material is mixed in three-dimensional space, but the mixing uniformity is slightly worse than that of the planetary mixer.

3. Performance characteristics
- Planetary mixer: High mixing uniformity, up to more than 99%, short mixing cycle, high production efficiency. Clean discharge, no residual material at the bottom of the barrel. The mixing blades of some planetary mixers adopt parallelogram design, which can be rotated 180 degrees and continue to be used after wear, reducing the cost of accessories.
- Twin-shaft concrete mixer: The mixing efficiency is also relatively high and the operation is stable. It is equipped with a hydrostatic starter, and the mixing noise is small. The unloading time is short, and the material is directly at the discharge port after the mixing is completed. However, its blade utilization rate is low, and the mixing arm may need to be replaced as a whole after a period of use, and the probability of the material holding the shaft and the arm is relatively high, which increases the maintenance and replacement costs of accessories.

4. Applicable scenarios
- Planetary mixer: Applicable to fields with extremely high requirements for mixing homogeneity, such as precast concrete component production, refractory materials, ceramsite, brick making and other industries, and can also be used for small-batch fine mixing scenarios in laboratories. Planetary mixers are more suitable for mixing concrete that requires mixing dry hard materials or mixing special materials such as fibers and chemical fibers.
- Twin-shaft mixer: Commonly used in large-volume commercial concrete mixing industries, such as commercial mixing stations and engineering stations, and also suitable for mixing wet mortar, lime mortar, and solidification treatment of hazardous wastes such as sludge and fly ash. These scenarios have relatively low requirements for the homogeneity of one-time mixing, and pay more attention to production efficiency and cost-effectiveness of equipment.

5. Equipment cost
- Planetary mixer: Due to its complex structural design, high manufacturing process requirements, and high technical content, the equipment price is usually relatively high. However, its accessories cost may have certain advantages in long-term use due to the characteristics of reusable blades.
- Twin-shaft mixer: The technology is mature, the construction process is relatively simple, and the price is generally more affordable. It has certain price advantages and technology accumulation advantages, and has a high penetration rate in the market. However, due to the high frequency of parts replacement, the maintenance cost may increase in the long run.

Planetary concrete mixers are more suitable for occasions with high requirements for mixing uniformity, while twin shaft concrete mixers are more suitable for large-scale and rapid production needs. Which type of concrete mixer to choose depends on the specific production needs and concrete type.
