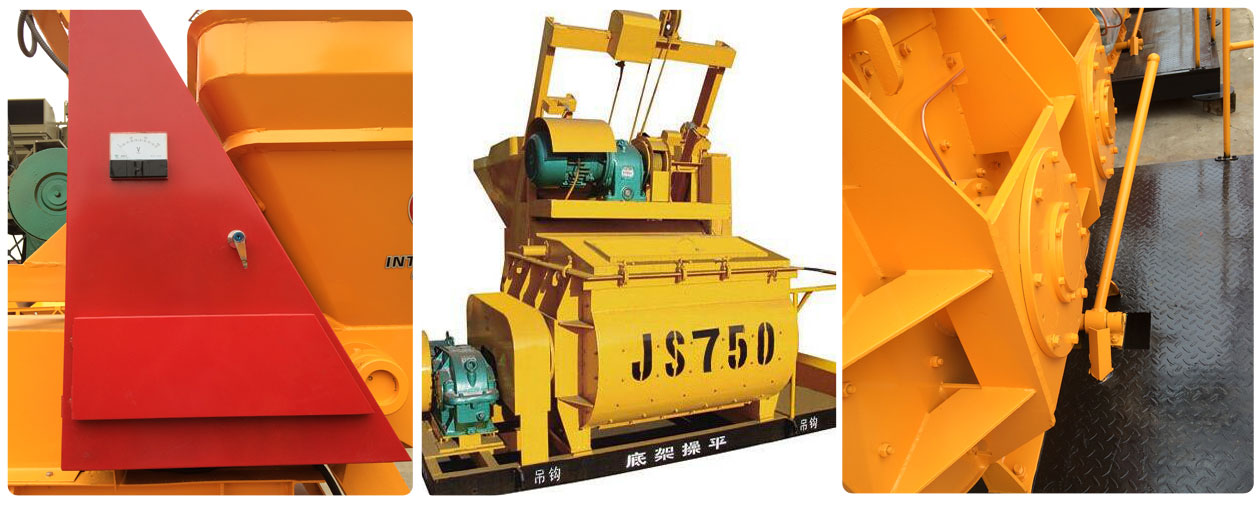

JS750 Concrete Mixer
The Features of JS750 Concrete Mixer Machine:
1 .Professional JS750 concrete mixer manufacturer
2. Lifting silo feeding system
3. Hydraulic unloading
4. Shaft-end sealing technology
5. Twin shaft compulsory concrete mixer
6. Connect with the concrete batch plant or single operated by the control box
The Description of JS750 Concrete Mixer Machine:
1. Twin-Shaft JS series concrete mixer machine is a multi-functional mixer, which can be applied to mix dry-hard concrete, plastic concrete, light aggregate concrete and all kinds of mortar.
2. Twin-Shaft JS750 concrete mixer machine has characteristics of simple structure, high mixing quality, high efficiency, energy-saving, low noise, simple operation, and can be used together with dump car, truck and concrete mixer truck, so it's the ideal machine for construction sites, large and medium-sized concrete factories.
The Technical Parameters of JS750 Concrete Mixer Machine:
| Specification | Value |
|---|---|
| Discharging Volume(L) | 750 |
| Charging Volume(L) | 1200 |
| Mixer Capacity(m3) | 0.75 |
| Lubrication System(Brand) | Choosed |
| Reducer(Brand) | Choosed |
| Aggregate Size(mm) | 60/80 |
| Aggregate Category(Quantity) | 4 |
| Working Circle(S) | 60 |
| Mixer Motor Power(KW) | 30 |
| Mixing Speed(r/min) | 30.5 |
| Mixing Blade(Quantity) | 2x8 |
| Lifting Motor Power(KW) | 7.5 |
| Pump Motor Power(KW) | 1.1 |
| Weight(KG) | 6150 |
| Dimensions(mm) | 4550x2250x2450 |
