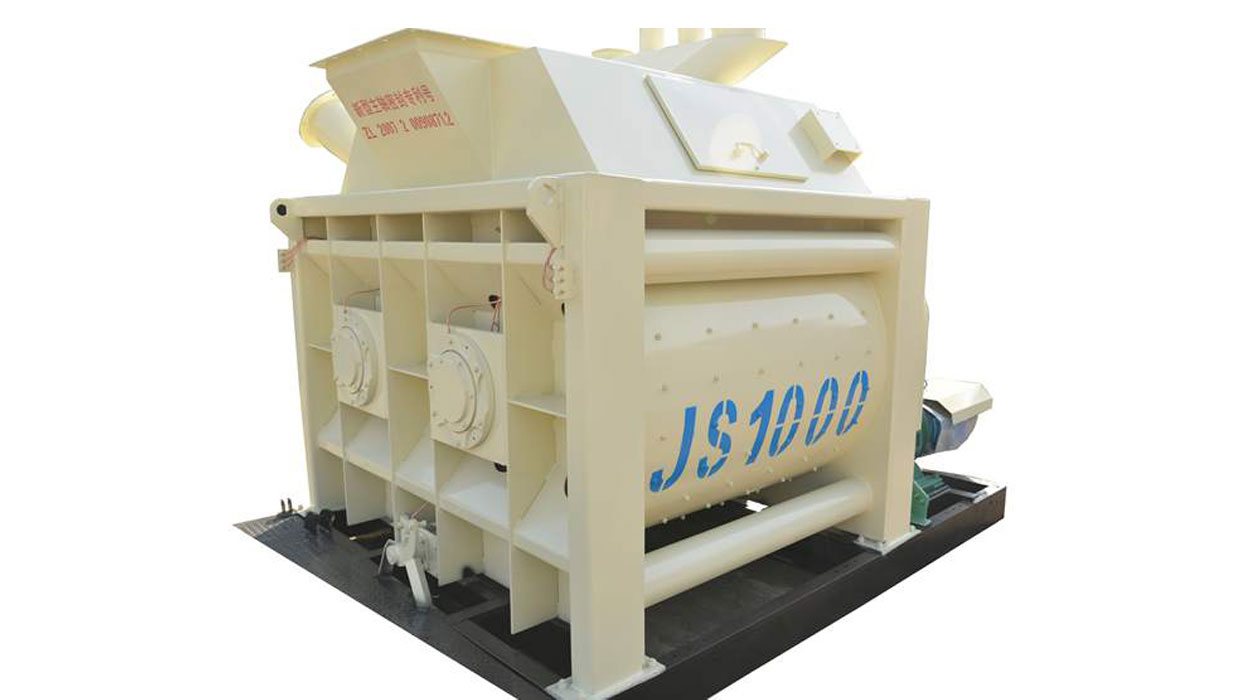

JS1000 Concrete Mixer

The Features of JS1000 Concrete Mixer:

1. Self loading feeding
2. Manual unloading or Hydraulic discharging system
3. High quality and low cost
4. Shaft-end sealing technology
5. Twin shaft compulsory concrete mixer
6. Suitable small concret batch plant machine
7. Connect with Small concrete batch plant or operate alone

The Description of JS1000 Concrete Mixer:

1. Skip self loading mobile concrete mixer, Mixing the plastic and half-dry hard concrete, fluid concrete and light aggregate concrete.
2. Working condition: Road, Bridge & Precast product for factory, work independently or be used with correspond batch plant machine as a mini-type concrete plant.
3. Discharge system: Hydraulic & manual mode, drive reposefully and low noise.
4. Inside Mixer: Liner and mixer blade adopts high rigidity wear resistant steel (long service life).
5. The electrical system adopts import component, form those world famous exporter which are reliability and have good performance.

The Technical Parameters of JS1000 Concrete Mixer:

Specification Value
Discharging Volume(L) 1000
Charging Volume(L) 1600
Mixer Capacity(m3) 1.0
Lubrication System(Brand) Choosed
Reducer(Brand) Choosed
Aggregate Size(mm) 60/80
Aggregate Category(Quantity) 4
Working Circle(S) 60
Mixer Motor Power(KW) 37
Mixing Speed(r/min) 37
Mixing Blade(Quantity) 2x8
Lifting Motor Power(KW) 11
Pump Motor Power(KW) 3
Weight(KG) 7880
Dimensions(mm) 4640x2250x2250
