YHZS60 Mobile Concrete Batching Plant
Main Features of YHZS60 Mobile Batching Plant:
All wiring of yhzs60 mobile batching plant is not needed to be dismounted, only needs 30 tons crane and this machine can be removed after the shift in one day. Installed the construction machine without foundation. If you are proceeding a tight project, this YHZS60 mobile batching plant will be very suitable. The mobile batching plant is equipped with tyres and traction pin, to drag the trailer to allow the maximum speed of up to 60 km / h. The total weight of mobile batching plant is 23.5 tons.

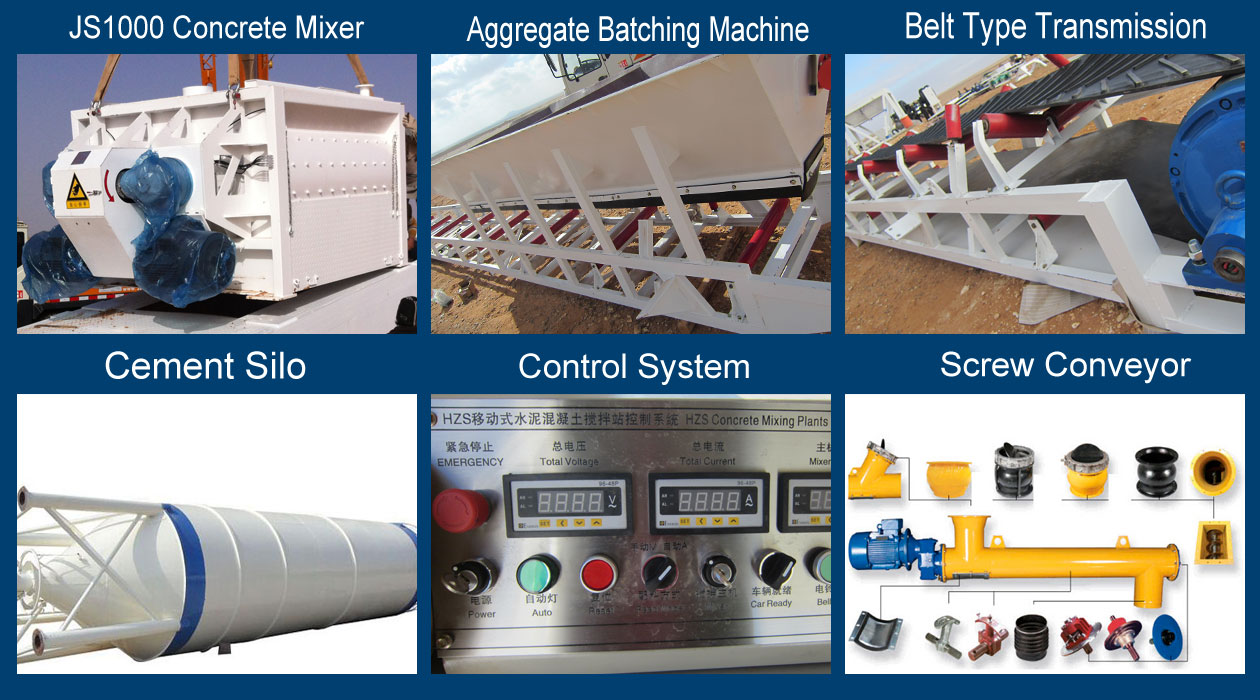

The Components of YHZS60 Mobile Batching Plant:
1. JS1000 twin shaft concrete mixer
2. Aggregate batching machine
3. Transmission system
4. Modular compact structure
5. Accurate measurement and measurement sensor
6. Agitator speed reducer and the control system are imported components
The Technical Data of YHZS60 Mobile Batching Plant:
|
Item |
YHZS60 |
|
|
theoretical productivity |
60m3/h |
|
|
weighing scale |
concrete |
3000kg |
|
cement |
720kg |
|
|
water |
360kg |
|
|
liquid addictive |
36kg |
|
|
overall power |
about 85KW (optional parts not included) |
|
|
power source |
380V/50HZ |
|
|
discharging height |
3.8m |
|
|
overall weight |
24t(optional parts not included) |
|
|
trail speed |
≤40km/h |
|
|
specification (LxWxH) |
during work |
17.7x3.6x8.2m |
|
during transportation |
18.3x2.4x4.35m |
|
