YHZS50 Mobile Concrete Batching Plant
Features of YHZS50 Portable Batching Plant:
1.The mixer of YHZS50 Portable Batching Plant is JS1000 Twin Shaft Concrete Mixer
2. The Productivity is 50m3/h
3. Convenient operation and good stability
4. Easy to install and transport
The Details of YHZS50 Portable Batching Plant:
1. YHZS50 portable concrete batching plant is special construction concrete equipment designed by our company as module.
2. It can also be used for the large and emergency repair construction operation.

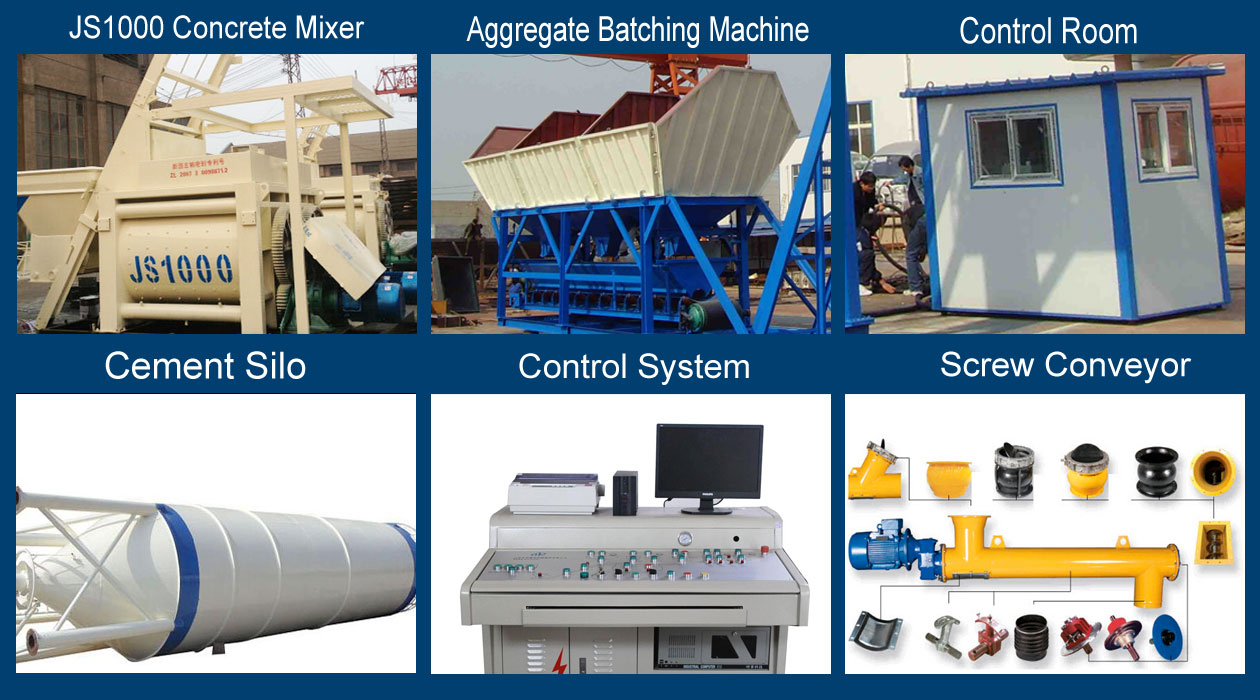

4. YHZS50 portable concrete batching plant is consisted by mixer, batching system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment..
5. We can deliver YHZS series portable concrete plant easily by container, and install quickly on site and get it to run without debugging.
6. In design, we adopt a lot of advanced technology in the world; make the weighing accurate and reliable, mixing average and efficient, feeding rapidly.
7. They can mix many different processes of concrete, such as dry, semi-sexual, plastic concrete. Meanwhile it can be operated and transported easily
8. HaoMei Machinery Equipment Co.,ltd is the suitable portable concrete batching plant supplier in China, Zhengzhou.
The Technical Datas of YHZS50 Portable Concrete Plant:
| Type | YHZS50 Portable Concrete Plant |
| Theoretical Productivity | 50m3/h |
| Concrete Weighing Scale | 3000kg |
| Cement Weighing Scale | 720kg |
| Water Weighing Scale | 360kg |
| Liquid Addictive Weighing Scale | 36kg |
| Overall Power | 85kw |
| Power Source | 380V/50HZ |
| Discharging Height | 3.8m |
| Overall Weight | 24t |
| Trail Speed | ≤40km/h |
|
Specification (LxWxH)During Work |
17.7x3.6x8.2m |
|
Specification (LxWxH)During Transportation |
18.3x2.4x4.35m |
The Settlements of YHZS50 Mobile Concrete Batching Plant:
