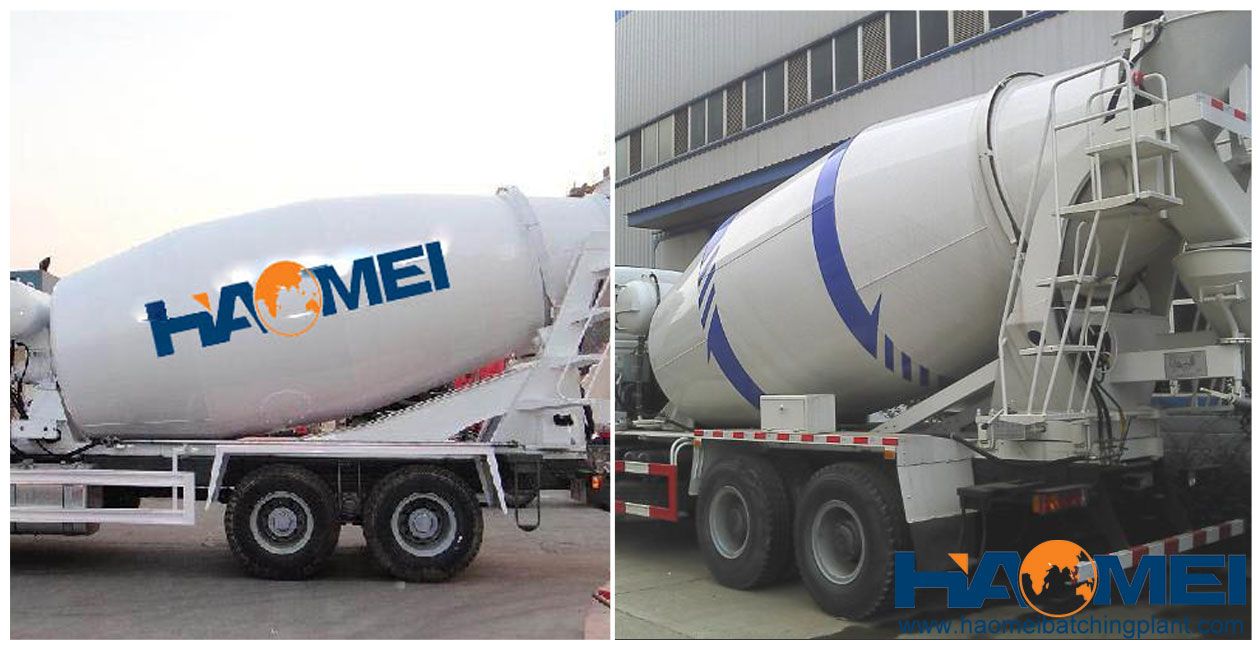

HM10-D Concrete Mixer Truck
The Features of HM10-D Cement Mixer Truck:
1. Main components of Cement Mixer Truck is mixer tank.
2. Emission Euro III
3. Four advanced system: Transmission system, Hydraulic System, Control System, Water Applying System.
The Description of HM10-D Cement Mixer Truck:
1. The mixer tank is the main part of the cement mixer truck, which is composed of a cylinder, a sealing pipe, a blade and a mixed leaf.
2. The transmission system adopts the way of the original vehicle engine.
3. The hydraulic system is mainly composed of hydraulic pump, hydraulic motor, oil filter, oil tank, high pressure pipe, low pressure line, return line and filter.
4. Heavy luxurious appearance of cement mixer truck price, especially in terms of comfort, safety and convenience, and humanity design aimed at world-class level.
5. Cement mixer truck composed of the chassis and upload part. Top part composed of mixing tube sub-frame, and out equipment, control systems, hydraulic systems, electrical systems, water supply systems and other components guardrail
The Technical Parameters of HM10-D Cement Truck Mixer:
| Specification | Value |
|---|---|
| Mixing Capacity(m³) | 10 |
| Tank Volume(m³) | 17.5 |
| Feeding Speed(m³/min) | ≥3.5 |
| Discharging Speed(m³/min) | ≥3 |
| Residual Ratio of Discharging(%) | ≤0.5% |
| Water Supply System | Air pressure |
| Water Tank Volume(L) | 300 |
| Overall Dimension(mm) | 9050*2496*3750 |
| Chassis Model | HOWO |
| Clutch(φ) | φ430 Monolithic dry type |
| Min Ground Clearance(mm) | 314 |
| Max Speed(km/h) | 90 |
| Engine Max Output Power(kw) | 276 |
| Emission Standard | Euro Ⅲ |
| Rated Load(kgs) | 13500 |
| Overall Weight(kgs) | 25000 |
| Wheelbase(mm) | 3225+1350 |
