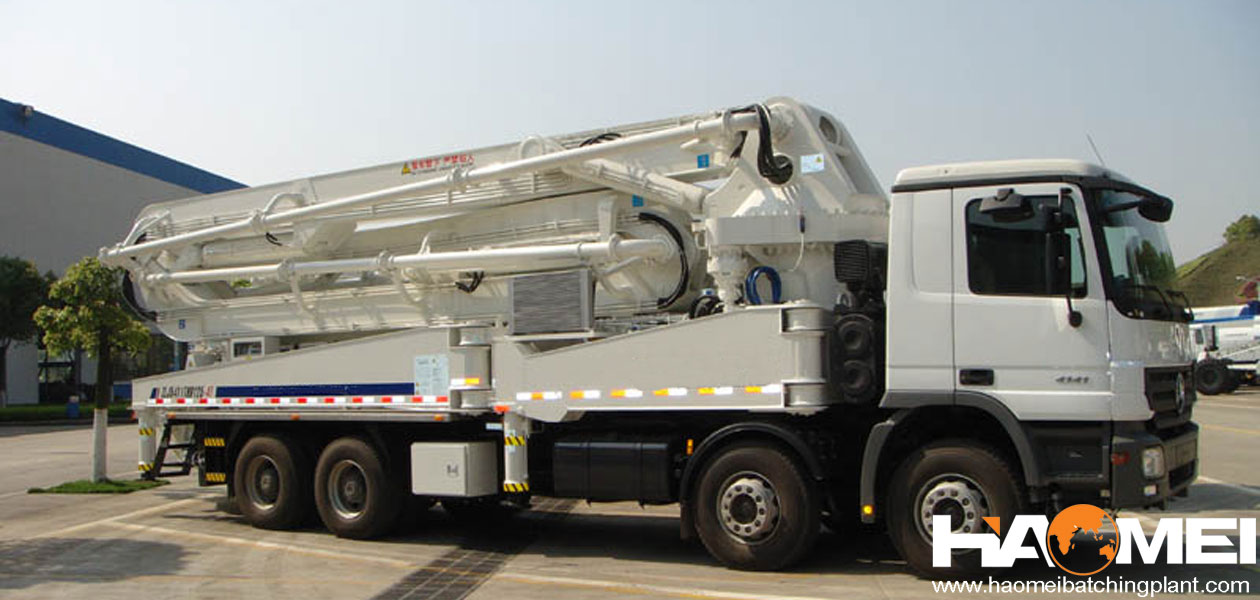

HDT5401THB-48/52 Concrete Pump
The Features of HDT5401THB-48/52 Truck Mounted Concrete Pump:
1. Concrete pump machine of all the parts are imported German HBC wireless remote control featureing light weight and portable equipment.
2. The pumping capacity can be unlimited control with various ways.
3. Boom rotation speed can be unlimited controlled.
4. In order to reduce the oil consumption, the truck mounted concrete pump is equipped with emergency brake and diesel engine automatic control speed device.
The Description of HDT5401THB-48/52 Truck Mounted Concrete Pump:
1. HaoMei concrete pumps features excellent product quality control, perfect product making, and absolutely adequate quality inspection which makes HAOMEI truck
mounted concrete pump achieve CHINA’s leading level and international advanced level.
2. Concrete Pump control system adopts steel plates all from SWEDISH SSAB, which have been treated by high-strength coldrolling with yield strength beyond 900Mpa,
to ensure boom system with high-strength and light weight.
3. The system’s aggregate carrying pipe,landing leg,and oil tank,etc. all have been treated by 100% stess removing after welding.
The Technical Parameters of HDT5401THB-48/52 Truck Mounted Concrete Pump:
| Specification | Value |
|---|---|
| output in theory(m3/h) | 125 |
| index of the pump carry capacity(Mpa.m3/h) | 586 |
| theoretic pumping pressure(Mpa) | 8.5 |
| bucket volume(L) | 700 |
| height of top surface of bucket(mm) | 140 |
| model of distribution valve(S) | valve |
| max. operation radius(m) | 43.7 47.8 |
| max. operation height(m) | 47.7 51.8 |
| max. operation depth(m) | 34.3 39.8 |
| open height of boom(mm) | 9065 9400 |
| distance between front landing legs(mm ) | 9780 10295 |
| distance between rear landing legs(mm) | 9860 10650 |
| distance between front & rear landing legs(mm) | 9470/10310 |
| diameter of delivery pipe(mm) | 125 |
| length of hose pipe(m) | 3 |
| rotary range of boom | 365° |
| quantity of boom | 5 |
| rotary angle of each boom(°) | 91/180/180/180/270 90/180/180/180/270 |
| wire line control distance(m) | 33 |
| romote control distance(m) | 200 |
| max. speed(km/h) | 85 80 |
| min. turn radius(mm) | 12000 12500 |
| 8800(m) | 10 |
| approach angle(°) | 16 |
| departure angle(°) | 11 |
| chassis model | HOWO ZZ5437S4667C |
| wheel base between the first & the second axle(mm) | 1800 |
| wheel base between the second & the third axle(mm) | 4600 5000 |
| front tread(mm) | 1350 |
| rear tread(mm) | 2022 |
| max. engine output power(kw) | 275(2200r/min) |
| max. engine output torque(n.m) | 1500 /(1100~1600 r/min) |
| max, gradient ability(%) | 37 |
| fuel consumption(L/100km) | 40 |
| (××)out dimension(L×W×H)mm | 13300×2500×4000 13990×2500×4000 |
| total weightkg |
40000 42000 |
