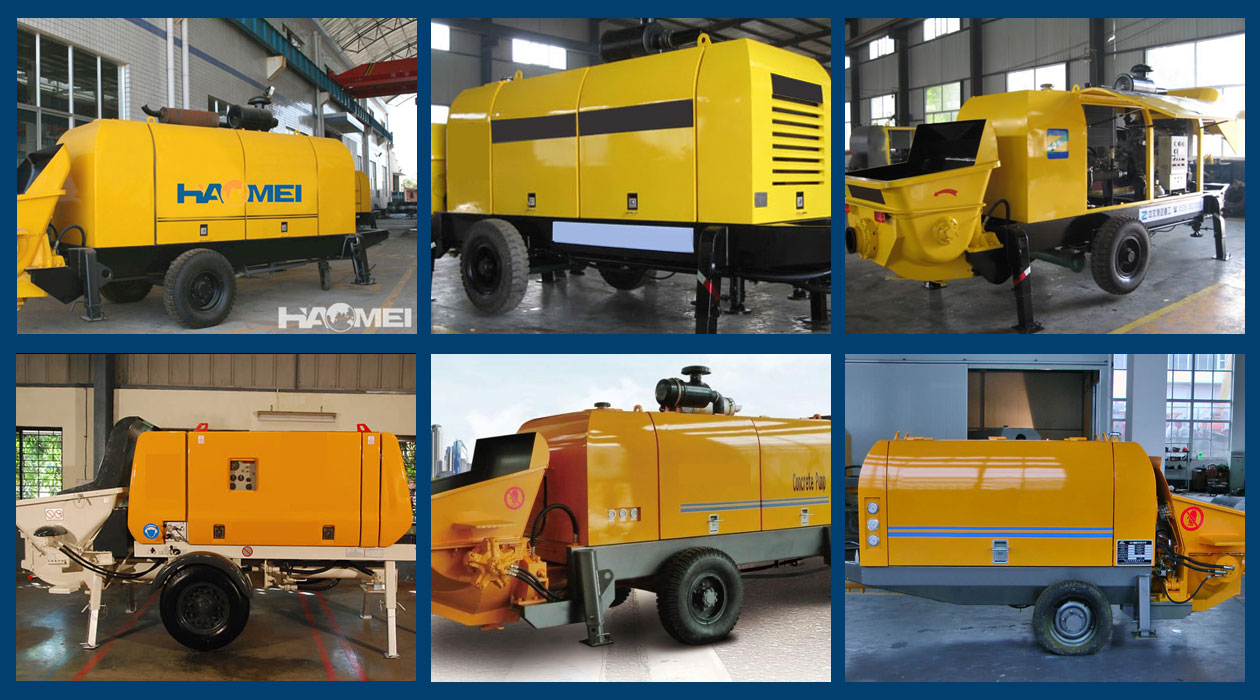

HBT60S1413-112R Trailer Concrete Pump
HBT60S1413-112R Trailer Concrete Pump:
1. Advance hydraulic system
2. Intelligent control system
3. Efficiency boom pump system
4. Top-end saving energy technology
5. Everlasting wear-resistance technology
The Description of Trailer Concrete Pump:
1. Trailer concrete pump is a concrete machine which is rack mounted on the bottom line and can be dragged through a pipe concrete pumping.
2. Features high efficiency, good quality, low cost, and friendly to environment. It is widely used in modern construction, airports, roads, bridges, water, electricity, energy and other soil construction.
3. In particular, trailer concrete pump is playing an important role in the ultra-high-rise and long distance pumping construction.
The Technical Parameters of Trailer Concrete Pump:
| Specification | Value |
|---|---|
| "Theory Concrete Output (Low / High Pressure)"(m3/h) | 60 |
| "Concrete Pressure (Low / high pressure)"(Mpa) | 13/7.4 |
| Hydraulic system pressure(Mpa) | 32 |
| Rotation speed(r/min) | 1480 |
| High / low pressure switch | Yes |
| Distribution valve(S) | valve |
| Pumping cylinder diameter/ Stroke(mm) | 195/1500 |
| Main oil pump discharge(ml/r) | 110 |
| Diesel engine(kw) | 112 |
| Voltage/ Frequency(V/Hz) | 380/50 |
| Hydraulic tank volume(L) | 400 |
| Height of adding material(mm) | 1355 |
| Hopper volume(m3) | 0.8 |
| Total mass(kg) | 5800 |
| Concrete slump(mm) | 120-230 |
| Aclinic Delivery distance(m) | 1200 |
| Theory vertical pumping height(m) | 250 |
| Dimension: L*W*H(mm) | 6240*2110*2550 |
