Structure of Vertical Planetary Concrete Mixers
As a sales manager with 15 years of experience exporting concrete mixing equipment at Haomei Machinery, I deeply understand that concrete mixer structural design directly determines equipment performance and lifespan, especially in complex working conditions such as the high temperatures and humidity of Asia, the dusty conditions of Africa, the high-intensity projects of the Middle East, and the drastic temperature differences of Central Asia. Our vertical planetary concrete mixers utilize five core structural systems to achieve superior performance, providing stable and efficient concrete mixing solutions for customers worldwide.
1. Fixed Mixing Drum: A Stable Foundation for Load Bearing
The mixing drum is integrally rolled and welded from 16mm thick Q345B high-strength steel plate. The inner wall is treated with sandblasting and rust removal, plus a double-layer wear-resistant coating. The bottom features an arc-shaped transition design to effectively prevent material accumulation. We offer various volume specifications of vertical planetary concrete mixer from 0.5-6m³ to meet different market demands, adapting to applications ranging from small rural buildings to large-scale infrastructure. Specially developed for the Middle East market, the reinforced drum wall can withstand continuous operation in high-temperature environments above 50℃, extending service life by 30%.

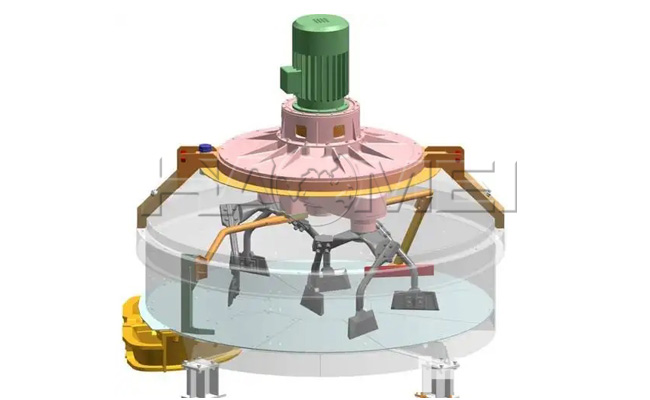

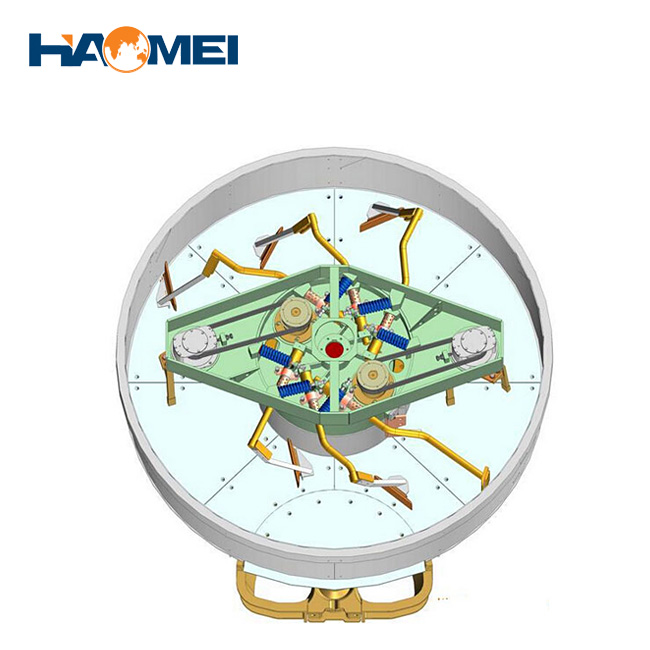

2. Planetary Mixing Device: A Composite Mixing Core of Revolution and Rotation
This is the soul of our vertical planetary concrete mixer product, consisting of one planetary carrier, 2-4 mixing arms, specialized mixing blades, and an automatic scraper. The planetary carrier drives the mixing arms to revolve around the central axis (5-12 rpm), while the mixing blades rotate at a high speed of 60-120 rpm, forming a three-dimensional mixing trajectory. This composite motion allows the material to simultaneously undergo macroscopic mixing from revolution and intense shearing from rotation, ensuring homogeneity within 30 seconds, improving efficiency by 40% compared to traditional drum mixers.
Our reinforced scraper, customized for the African market, uses tungsten carbide alloy inserts to effectively scrape away materials adhering to the walls, solving the problem of high mud content in local aggregates; while the model for Asian precast component plants is equipped with parallelogram-shaped blades that can be rotated 180° for repeated use, doubling utilization.
3. Drive System: The High-Efficiency Heart of Power Transmission
The system employs a combination of a hardened-tooth planetary reducer and a variable-frequency motor, achieving a transmission efficiency of over 96%. It allows for stepless speed regulation from 0-50Hz, adapting to various mixing requirements from dry-hard to fluid concrete. The motor has an IP55 protection rating, ensuring stable operation even in the windy and sandy environments of the Middle East. The specially customized high-temperature resistant windings can withstand extreme temperature differences of -20℃ to 45℃ in Central Asia. An overload protection device has been incorporated into the drive system, automatically shutting down the machine when the mixing resistance exceeds a set value to prevent equipment damage. This design is particularly useful in regions with unstable power grids in Africa.
4. Unloading System: A Smooth Terminal with Precise Control
The system utilizes a hydraulically driven double-door structure, allowing for an unloading angle of up to 60°. Unloading time is controlled within 15-30 seconds, with a residue rate of less than 0.5%. For the rainy environment of Southeast Asia, we have upgraded the sealing system with a double rubber ring + dust cover design to effectively prevent rainwater seepage. Models for Central Asia are equipped with an electric heating insulation device to prevent material solidification and blockage of the discharge port at low temperatures. All models support remote control, facilitating integration into automated mixing plants.
5. Wear-Resistant Protection System: Key to Extended Lifespan
The inner wall of the mixing drum, mixing arms, and blades are all made of high-chromium alloy (Cr26) wear-resistant material with a thickness of 12-15mm, extending service life by 2 times compared to ordinary materials. We also offer a variety of materials such as ceramic and polyurethane to suit different operating conditions: ceramic coatings are used in the Middle East for acid and alkali corrosion resistance; a welded wear-resistant layer is used in the African market to cope with high-wear environments; and stainless steel is recommended for precast component manufacturers in Asia to meet high cleanliness requirements.
With years of experience, I've observed differentiated structural requirements of vertical planetary concrete mixer from clients in different regions:
Southeast Asian clients prioritize lightweight equipment for easy transport and installation;
Middle Eastern clients emphasize high strength for large-scale projects;
African clients prioritize ease of maintenance to reduce operating costs;
Central Asian clients focus on low-temperature resistance.
Haomei Machinery's vertical planetary concrete mixers, with their modular design, allow for rapid configuration adjustments to meet the individual needs of global clients.
Our vertical planetary concrete mixer equipment has been exported to over 30 countries worldwide and is operating stably in key projects in Malaysia, Nigeria, Saudi Arabia, Kazakhstan, and other countries. If you are looking for a reliable and high-performance concrete mixing plant, Haomei Machinery's vertical planetary concrete mixers are your ideal choice. We offer a 2-year warranty and 72-hour global after-sales service to safeguard your projects.
