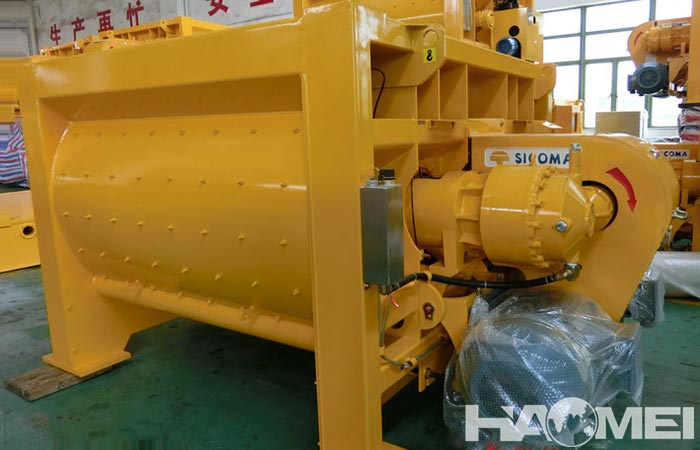

SICOMA Standard Concrete Mixer MAO Series
SICOMA MAO series concrete mixer is an efficient and reliable concrete mixing equipment, widely used in construction, roads, bridges and other engineering projects. This series of sicoma standard concrete mixer has won the trust of users around the world with its superior performance and durable design.
Specification of sicoma standard concrete mixer Mao series:
- Model: MAO series (such as MAO 3000/2000, MAO 4500/3000, etc.)
- Mixing capacity: Depending on the model, the mixing capacity ranges from 1.5m³ to 6.0m³ (corresponding to models MAO1500 to MAO6000), and the dry material capacity is up to 9,000L (9m³).
- Cycle period: 60 seconds, with a maximum productivity of 240m³/h (such as MAO6000).
- Aggregate adaptation: Maximum support for pebbles 80mm, crushed stone 60mm.
- Mixing power: The power range is generally between 18 kW and 75 kW, depending on the model.
- Mixing speed: Adjustable mixing speed to ensure the best mixing effect of different materials.
Detailed model parameters of sicoma concrete mixer Mao series:
| Model | Dry material capacity (L) | Compacted concrete (L) | Motor power (kW) | Weight (T) |
| MAO2250/1500 | 2,250 | 1,500 | 2×30 | 6.5 |
| MAO3000/2000 | 3,000 | 2,000 | 2×37 | 7.5 |
| MAO6000/4000 | 6,000 | 4,000 | 2×75 | 11.8 |
| MAO9000/6000 | 9,000 | 6,000 | 4×55 | 18 |
Core technical features of sicoma concrete mixer:
1. Shaft end sealing system
Adopting quadruple mechanical seal + wind pressure air cushion protection (air pressure 0.02–0.05MPa), completely eliminate slurry leakage and oil leakage, and the service life of the seal is 6–10 years136. Actual cases show that 1.2 million cubic meters of concrete were produced continuously without sealing failure.
2. Intelligent monitoring system
Real-time monitoring of the oil temperature/oil volume of the gearbox, the unloading gate pump, and the status of the electric lubrication pump, with sound and light alarms in case of abnormalities.
3. Lubrication and transmission design
- Lubrication system: DC24V dedicated electric grease pump, four independent pump cores directly supply the shaft head, no diverter valve is required, and the grease consumption per shift is 0.8-1L.
- Gearbox: Military-grade material enhanced design, strong overload resistance, and optional filter cooling system to extend life.
4. Optimization of wear-resistant parts
- Mixing arm: Streamlined alloy structure, resistance reduced by 33%, energy consumption reduced by 19%, and life 3-5 times that of ordinary arms.
- Scraper and liner: Surface composite chromium carbide wear-resistant layer, life increased by more than 3 times (1.2 million cubic meters of unreplaced cases).
Application areas of sicoma standard concrete mixer:
MAO series SICOMA concrete mixers are widely used in:
- Construction engineering: for concrete production of residential and commercial buildings.
- Infrastructure: Provide high-quality concrete in road, bridge and tunnel projects.
- Precast components: Used in the production of precast concrete components.
With its multiple sealing technology, modular intelligent system and military-grade wear-resistant design, the MAO series sicoma standard concrete mixer has become a benchmark equipment for high-load commercial concrete production, especially suitable for large mixing plants and harsh engineering environments. SICOMA MAO series concrete mixers have become the preferred equipment in the field of concrete production with their excellent performance and reliable quality.
